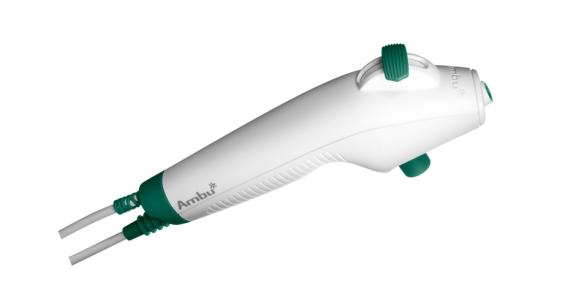

Ambu® aScope™ 4 RhinoLaryngo Intervention

Introduction

High quality imaging meets single-use efficiency

Working channels present particular problems when it comes to cleaning reusable scopes. These scopes require full reprocessing, and effective disinfection is complicated by their long, narrow lumens and delicate materials. Even the most stringent cleaning procedures do not guarantee the complete removal of biofilm from a reusable scope.

Sterile straight from the pack, single-use aScope™ 4 RhinoLaryngo Intervention ensures patient safety by eliminating the risk of device-related cross-contamination. It is always available and simplifies your workflow as there are no repairs and no costly and time-consuming cleaning tasks.

The lightweight, aScope™ 4 RhinoLaryngo Intervention has a 5.0 mm outer diameter and a 2.2 mm working channel. It connects to the portable, high-resolution Ambu® aView™ monitor and delivers clear, sharp images of the upper airway, enabling easy navigation and identification of anatomical structures.

Together with the single-use Ambu® aScope™ 4 RhinoLaryngo Slim and Ambu® aView™ monitor it offers a complete endoscope solution for ENT.

Release information:

aScope™ 4 RhinoLaryngo Intervention is not available for sale in all countries. Please contact your local Ambu sales representative.

Always read the instructions for use.

Key Benefits

Experience the single-use efficiency

Sterile from the pack

Always sterile with no risk of device-related cross-contamination, ensuring patient safety as well as adherence to rigorous guidelines.

Simplified workflow

aScope™ 4 RhinoLaryngo is always available when needed and eliminates time-consuming and costly endoscope cleaning and repairs, allowing you to improve productivity.

High quality video imaging

aScope™ 4 RhinoLaryngo offers clear and sharp visibility of anatomical structures to enable easy identification and navigation.

Portable aView monitor

Compact and easy to use, the aView™ monitor supports training, knowledge sharing and patient involvement while enabling simple procedural recording.

Lightweight, ergonomic design

aScope™ 4 RhinoLaryngo is simple to set up, intuitive to use and comfortable to hold and manoeuvre.

Single-use efficiency

Portable, easy-to-use, eliminates cost and hassle associated with cleaning and repairs

Features

Take a closer look

Distal end

Contains the camera and light source (two LEDs).

Bending section

Precise tip motion and high bending angles of 130°/130°

aView™ connector

Connector for blue inlet on aView™ monitor.

Ergonomic grip

Shaped, rippled surface and lightweight design to give a comfortable grip during the procedure

Control lever

Moves the distal tip easily up and down in a single plane.

Working channel of 2.2 mm

Facilitates insertion of soft endoscopic accessories and suctioning of secretion.

Suction connector

Ergonomic suction button activates efficient suction when pressed

Suction button

Activates efficient suction when pressed.

1 Distal end

Contains the camera and light source (two LEDs).

2 Bending section

Precise tip motion and high bending angles of 130°/130°

3 aView™ connector

Connector for blue inlet on aView™ monitor.

4 Ergonomic grip

Shaped, rippled surface and lightweight design to give a comfortable grip during the procedure

5 Control lever

Moves the distal tip easily up and down in a single plane.

6 Working channel of 2.2 mm

Facilitates insertion of soft endoscopic accessories and suctioning of secretion.

7 Suction connector

Ergonomic suction button activates efficient suction when pressed

8 Suction button

Activates efficient suction when pressed.

Video

Introducing aScope™ 4 RhinoLaryngo

aScope 4 RhinoLaryngo product guide video

Clinical Studies

6

clinical studies are available for this product

View 6 clinical studies

Technical specifications

Bending capabilities

130° up, 130° down

Insertion cord diameter

5.0 mm

Distal end diameter

5.5 mm

Working length

350 mm

Channel average inner diameter

2.2 mm

Spare parts

There are no spare parts or accessories for this product.

Downloads

Datasheets

aScope™ 4 RhinoLaryngo Intervention Datasheet
(1.81 MB - pdf)

Instructions for Use

aScope 4 RhinoLaryngo Intervention ENG Abridged Version
(1.09 MB - pdf)

Video

aScope 4 RhinoLaryngo In-service
(192.74 MB - mp4)

August 2019
